Heavy-duty roller conveyor by Hytrol is designed for zero-pressure accumulation

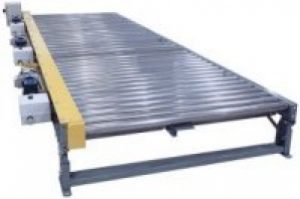

The Hytrol Model 25-PVEZD Heavy Duty Accumulating live roller conveyor, available from Norpak

Norpak Handlingis a proud Integration Partner with Hytrol Conveyor Company, one of the business partners that contribute to Norpak’s reputation as a top Canadian supplier of conveyors and related equipment. One of the newest innovations available fromHytrolis the Model 25-PVEZD, a Heavy Duty Accumulating live roller conveyor built to handle zero-pressure accumulation of products.

The Model 25-PVEZD is a conveyor with rollers driven by a Poly-V belt. It is most ideal for pallets, drums, containers, and similar loads.

Uses EZLogic and EZDrive

Available fromNorpakwith optional, adjustable HSN-type floor supports, the Model 25-PVEZD roller conveyor uses two innovative types of technology developed by Hytrol: the EZDrive System and the EZLogic Accumulation System. EZDrive is a system involving a zone starter box that provides power to the gear motor and allows it to be controlled by the EZLogic zone controller while preventing overload.

EZLogic employs a method of zero-pressure control blending high sensing accuracy with electronic logic control, using a special zone controller. Other EZLogic features include: dynamic zone allocation, which automatically adjusts zone lengths to accommodate product lengths; a sleep feature, which stops tread rollers when no items are loaded; and loading and unloading zone features.

With the 25-PVEZD, products can be accumulated in different zones and released on request. Other features and specifications for this roller conveyor include the following:

• Shaft mounted drive;
• Formed steel guards that enclose drive belts completely;
• Sealed, pre-lubricated ball bearings;
• Constant conveying speed of 28 feet per minute;
• Optional alternative constant speeds or variable speeds available;
• Bed bolted together with butt couplings, with rollers spaced every three, four, or six inches;
• Maximum capacity of 300 pounds with supports on ten-foot centres, or 1,000 pounds with supports on five-foot centres; and
• Optional angle-type guard rail.

About the companies

Hytrol has been designing and producing conveyor systems, controls, and solutions for 70 years. Its headquarters is in Jonesboro, AR.

Based in Port Hope, Ont., Norpak Handling Limited has provided conveying solutions throughout all market sectors across North America since 1988.

为米ore information,contact Norpak Handling.
