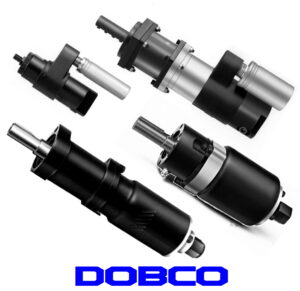

IR in-line, multi-vane air motors come in more than a dozen series

Dobco carries Ingersoll Rand air motors.

Dobco Equipment Ltd.is the top Canadian source for industrial tools and equipment by Ingersoll Rand, or IR, a major international manufacturer for more than 150 years. This includes an unmatched selection of air motors, such as many different variations of in-line, planetary-gear, multi-vane air motors. These units create sheer power from the natural environment and serve as flexible, efficient alternatives to electric sources. IR recommends them for a broad variety of applications.

With different types of gearing

More than a dozen series of thesein-line, planetary-gear, multi-vane air motorsare available:

• 0000-series.With steel motor housing, flush-type grease fittings at rotation points for gear and bearing lubrication, exhaust manifold that can be rotated within 360 degrees, and muffler. Options include flange and foot brackets.
• M002 series.Ten models available fromDobco, with free speeds ranging from 132 to 26,000 revolutions per minute (rpm).
• 000-series.With similar features and equipment options as the 0000-series has, but with different speeds.
• M004 series.Ten models available; free speeds go from 85 to 18,000 rpm.
• 0-series.Power motors available with 0-series or 2200 series gearing. The latter come with standard flange brackets, providing flange mounting. Male threaded spindles on forward-rotation models.
• M007 series.Options include two-hole flange mounting or six-hole face mounting on gear ratios and ½- or ¾-inch round keyed shaft on gear ratios.
• 2200 series.Power motors with thread-on, bolt-on, or 44-series gearing. Options for forward-rotation model with threaded spindles include male square-drive adapter, female stirring rod adapter, and drill chucks.
• 1801 and 1841 series.Equipment options include two-hole face mounting, exhaust deflector assembly with ¾-inch pipe tap, and square drive shaft on gear ratios.
• 3800 and 3840 series.Among the options: six-hole face mounting, exhaust deflector assembly with ¾-inch pipe tap, and square drive shaft.
• 44-series.Available with foot brackets. Gear housing has precision pilot diameter and four mounting holes for flange mounting.

IR also makes spur-gear and direct-drive multi-vane motors, along with individual components and accessories, including filters, regulators, and lubricators.

To learn more,contact Dobco.
