Leading thermostatic steam trap is factory calibrated
The purpose of a steam trap is to prevent steam from passing its point of use, and toallow condensate to be expelled as soon as it forms. Barnes & Jones thermostaticsteam traps do this very well. So well, in fact, that the company says it performs thisfunction better than any other steam trap on the market today — because it’s the onlyfactory-calibrated thermostatic steam trap available.
How it works
Thermostatic steam traps are balanced pressure devices that use vapour pressure,within a diaphragm or bellows, to open and close a valve in a modulating manner,dependent upon the temperature surrounding it. The trap is normally open to expel airand condensate. As saturated steam surrounds the unit, the volatile fill inside theelement flashes into a vapour, creating an internal pressure. This equalization ofpressures allows the element to expand to its natural length or “closed position”,preventing steam from passing its point of use. The presence of condensate will coolthe element and condense the vapour within, reinstating the vacuum, causing theelement to retract to its open position and allowing the condensate to drain from thetrap.
Edison/Barnes & Jones thermostatic steam traps

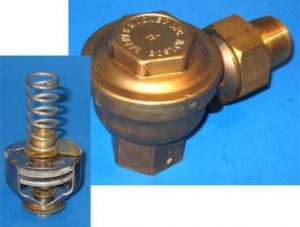

Edison/Barnes & Jonesthermostatic steam traps, available from Keystone SteamSupplies, are equipped with one-piece, self-contained “cage units” that are 100 per centfactory calibrated and tested under live steam and condensate to ensure uniformoperation in the field. The one-piece, self-contained design allows for the ease of inlinerepair. There are no piping connections that need to be broken, or multiple internalcomponents to be removed. The body of the trap acts merely as a housing for the “cageunit”, which performs the actual steam trap functions.
Ideal for all outdoor applications and all process applications (especially batchprocesses) up to 250-pound pressures, thermostatic traps have a large water and airhandling capacity.
更多信息rmation on Edison/Barnes & Jones thermostatic steam traps,contactKeystone Steam Supplies.
