Ohio Broach’s vertical machines combine compact size with high speed

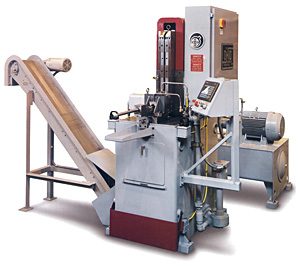

TheRP/224 vertical surface broaching machinefrom The Ohio Broach &Machine Company is perfect for small broaching needs. The machine isdesigned to offer compact size and high-speed performance.

Compact size

The compact design of the RP/224 ensures this unit takes up a minimum amountof a facility’s valuable floor space. It is solidly constructed and has a rigid baseweldment that acts as both a coolant reservoir and a support for the ram, guideand table assembly.

The RP/224 measures 62 inches wide by 76 inches long and 76 inches tall.

High performance

This machine is capable of reaching broaching speeds up to 100 feet per minute并返回的速度每分钟200英尺。它有一个capacity of two tons and a 24-inch stroke.

The RP/224 is perfect for secondary machining operations, including flats, slots,surface contours and more. This capability eliminates the milling and grindingthat are normally required for such operations. The machine also features solid-state Allen-Bradley programmable controls.

High-quality construction

The RP/224 is constructed using the best materials and techniques available toprovide durability, long service life and precise results. For instance, the machineways are made from medium carbon steel that is coated with the anti-stickbearing surface Moglice. The ram slides are made from close-grain, high-tensilecast iron that has been ground to ensure a precise fit. The guide block is alsomade from durable cast iron.

The machine utilizes an individual point pressurized system for lubrication, and ithas a high-performance Vickers pump to power the open-loop hydraulics system.

More information

Several optional features are available, such as chip removal systems andindustrial castors for easy relocation. Ohio Broach also offers a range of machineaccessories, such as additional tables and clamping solutions. For moreinformation,contact Ohio Broach.

---
